您所在的位置:首页 > 载体库 > 真菌相关载体
pBridge 构建费用400元/个起

请在线咨询或直接联系18986294316/18171096062

SMART 快构 120元-请注册登录 http://49.234.53.21/login

基本信息

载体类型:

酵母三杂交载体

载体抗性:

Amp

筛选标记:

TRP1

启动子:

ADH1

载体大小:

6526bp

5' 测序引物:

PGAL4F: AGCATAGAATAAGTGCGACA

PMet17/25: ATTCTATTACCCCCATCCAT

3' 测序引物:

ADH1ter-Wai: CACTTTAAAATTTGTATACAC

PGK1ter: TTGATCTATCGATTTCAATTC

备注

如有侵权请产权持有人尽快联系法务15927229196

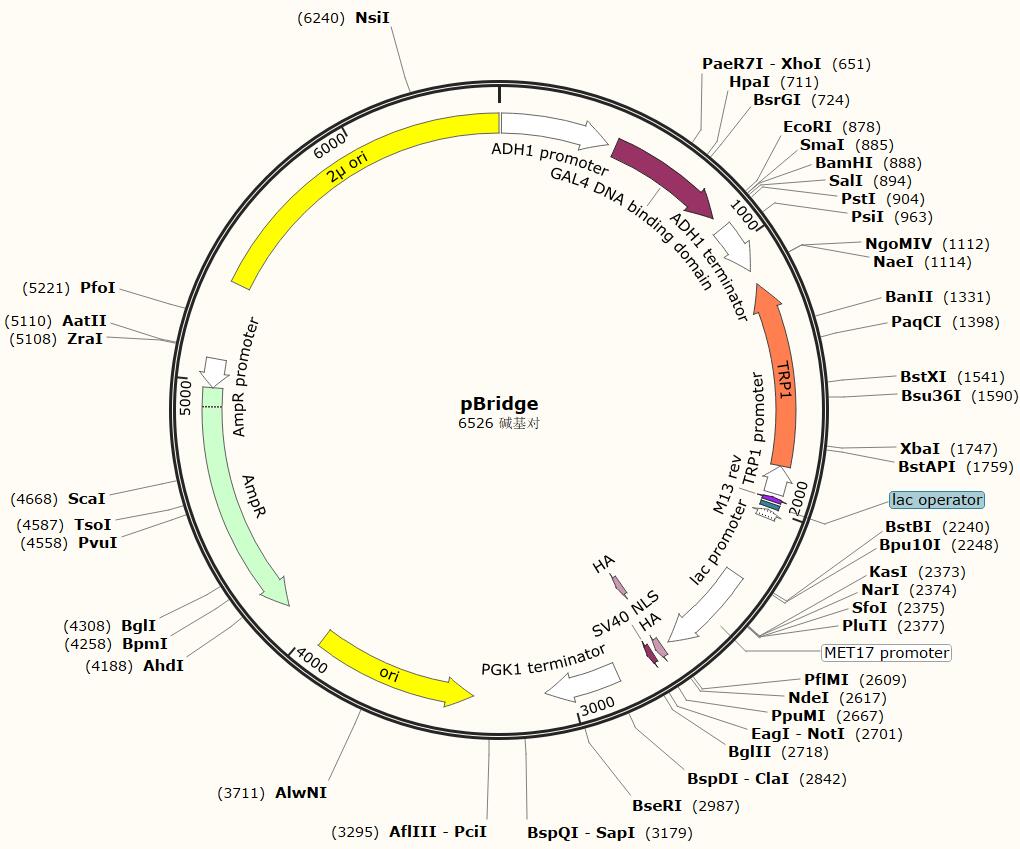

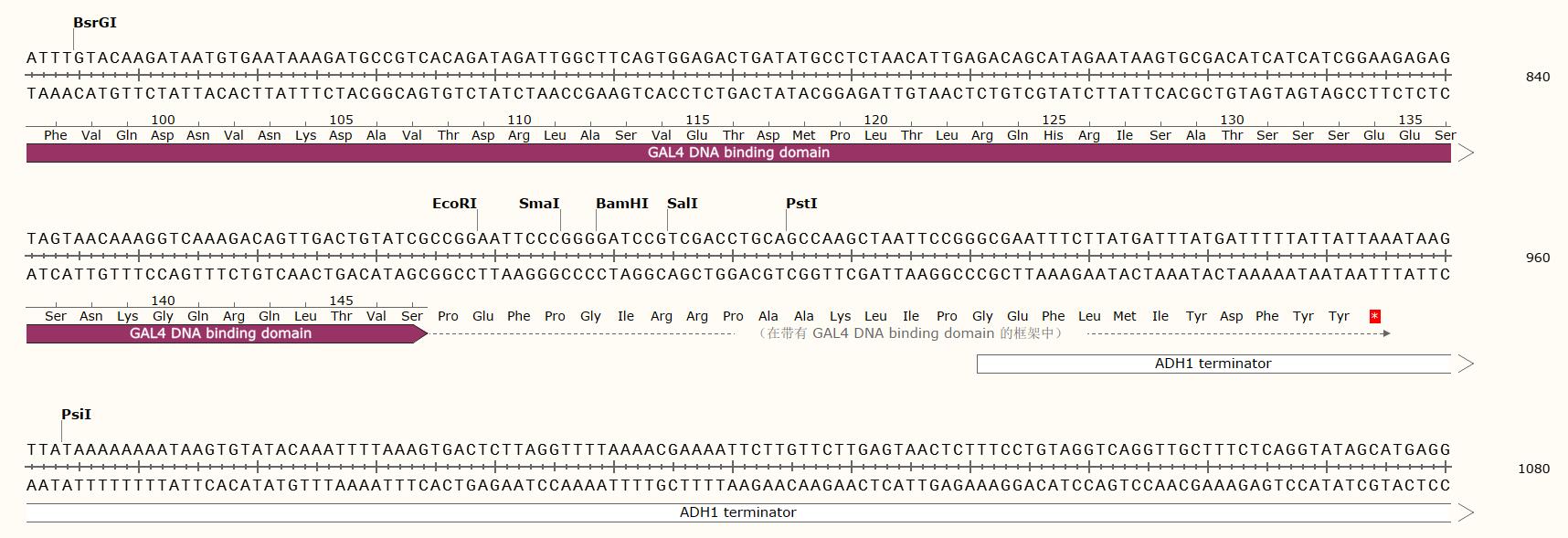

质粒图谱和多克隆位点信息

注意:

客户在我公司选择构建载体服务项目时,请自行提供母源载体。

如要使用本公司保存的母源载体时,本公司不能保证所有母源载体完全符合客户预期,也不承担由此产生的任何责任。




载体说明

pBridgeTM expresses two proteins: a DNA-binding domain fusion, and an additional protein (1–3). pBridge thus allows establishment of three-hybrid systems when used in combination with an activation domain fusion vector and yeast strains from any of CLONTECH's GAL4-based two-hybrid systems (#K1604-1, #K1605-1, #K1612-1). This vector generates a hybrid protein that contains the sequences for the GAL4 DNA-binding domain (DNA-BD; a.a. 1–147) and the sequence cloned into MCS I. The fusion protein is expressed in yeast host cells from the constitutive ADH1 promoter; transcription is terminated at the ADH1 transcription termination signal. The hybrid protein is targeted to the yeast nucleus by nuclear localization sequences (NLS) that are an intrinsic part of the GAL4 DNA-BD (3). An additional gene of interest can be cloned into MCS II which is located downstream of an HA epitope and a second NLS. The resulting fusion protein is conditionally expressed from the MET25 promoter in response to methionine levels in the medium; i.e., it is repressed in the presence of 1 mM methionine and expressed in the absence of methionine (1).

pBridge is a shuttle vector that replicates autonomously in both E. coli and S. cerevisiae. It carries the bla gene (for ampicillin resistance in E. coli) and the TRP1 nutritional marker that allow yeast auxotrophs carrying pBridge to grow on limiting synthetic medium lacking tryptophan. Note: Yeast strain Y187 is a methionine auxotroph; therefore, haploid Y187 harboring pBridge cannot be grown on medium lacking methionine.

载体序列AACGAAGCATCTGTGCTTCATTTTGTAGAACAAAAATGCAACGCGAGAGCGCTAATTTTTCAAACAAAGAATCTGAGCTGCATTTTTACAGAACAGAAATGCAACGCGAAAGCGCTATTTTACCAACGAAGAATCTGTGCTTCATTTTTGTAAAACAAAAATGCAACGCGAGAGCGCTAATTTTTCAAACAAAGAATCTGAGCTGCATTTTTACAGAACAGAAATGCAACGCGAGAGCGCTATTTTACCAACAAAGAATCTATACTTCTTTTTTGTTCTACAAAAATGCATCCCGAGAGCGCTATTTTTCTAACAAAGCATCTTAGATTACTTTTTTTCTCCTTTGTGCGCTCTATAATGCAGTCTCTTGATAACTTTTTGCACTGTAGGTCCGTTAAGGTTAGAAGAAGGCTACTTTGGTGTCTATTTTCTCTTCCATAAAAAAAGCCTGACTCCACTTCCCGCGTTTACTGATTACTAGCGAAGCTGCGGGTGCATTTTTTCAAGATAAAGGCATCCCCGATTATATTCTATACCGATGTGGATTGCGCATACTTTGTGAACAGAAAGTGATAGCGTTGATGATTCTTCATTGGTCAGAAAATTATGAACGGTTTCTTCTATTTTGTCTCTATATACTACGTATAGGAAATGTTTACATTTTCGTATTGTTTTCGATTCACTCTATGAATAGTTCTTACTACAATTTTTTTGTCTAAAGAGTAATACTAGAGATAAACATAAAAAATGTAGAGGTCGAGTTTAGATGCAAGTTCAAGGAGCGAAAGGTGGATGGGTAGGTTATATAGGGATATAGCACAGAGATATATAGCAAAGAGATACTTTTGAGCAATGTTTGTGGAAGCGGTATTCGCAATATTTTAGTAGCTCGTTACAGTCCGGTGCGTTTTTGGTTTTTTGAAAGTGCGTCTTCAGAGCGCTTTTGGTTTTCAAAAGCGCTCTGAAGTTCCTATACTTTCTAGCTAGAGAATAGGAACTTCGGAATAGGAACTTCAAAGCGTTTCCGAAAACGAGCGCTTCCGAAAATGCAACGCGAGCTGCGCACATACAGCTCACTGTTCACGTCGCACCTATATCTGCGTGTTGCCTGTATATATATATACATGAGAAGAACGGCATAGTGCGTGTTTATGCTTAAATGCGTTATGGTGCACTCTCAGTACAATCTGCTCTGATGCCGCATAGTTAAGCCAGCCCCGACACCCGCCAACACCCGCTGACGCGCCCTGACGGGCTTGTCTGCTCCCGGCATCCGCTTACAGACAAGCTGTGACCGTCTCCGGGAGCTGCATGTGTCAGAGGTTTTCACCGTCATCACCGAAACGCGCGAGACGAAAGGGCCTCGTGATACGCCTATTTTTATAGGTTAATGTCATGATAATAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTTAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACGATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAACTGTCAGACCAAGTTTACTCATATATACTTTAGATTGATTTAAAACTTCATTTTTAATTTAAAAGGATCTAGGTGAAGATCCTTTTTGATAATCTCATGACCAAAATCCCTTAACGTGAGTTTTCGTTCCACTGAGCGTCAGACCCCGTAGAAAAGATCAAAGGATCTTCTTGAGATCCTTTTTTTCTGCGCGTAATCTGCTGCTTGCAAACAAAAAAACCACCGCTACCAGCGGTGGTTTGTTTGCCGGATCAAGAGCTACCAACTCTTTTTCCGAAGGTAACTGGCTTCAGCAGAGCGCAGATACCAAATACTGTTCTTCTAGTGTAGCCGTAGTTAGGCCACCACTTCAAGAACTCTGTAGCACCGCCTACATACCTCGCTCTGCTAATCCTGTTACCAGTGGCTGCTGCCAGTGGCGATAAGTCGTGTCTTACCGGGTTGGACTCAAGACGATAGTTACCGGATAAGGCGCAGCGGTCGGGCTGAACGGGGGGTTCGTGCACACAGCCCAGCTTGGAGCGAACGACCTACACCGAACTGAGATACCTACAGCGTGAGCTATGAGAAAGCGCCACGCTTCCCGAAGGGAGAAAGGCGGACAGGTATCCGGTAAGCGGCAGGGTCGGAACAGGAGAGCGCACGAGGGAGCTTCCAGGGGGAAACGCCTGGTATCTTTATAGTCCTGTCGGGTTTCGCCACCTCTGACTTGAGCGTCGATTTTTGTGATGCTCGTCAGGGGGGCGGAGCCTATGGAAAAACGCCAGCAACGCGGCCTTTTTACGGTTCCTGGCCTTTTGCTGGCCTTTTGCTCACATGTTCTTTCCTGCGTTATCCCCTGATTCTGTGGATAACCGTATTACCGCCTTTGAGTGAGCTGATACCGCTCGCCGCAGCCGAACGACCGAGCGCAGCGAGTCAGTGAGCGAGGAAGCGGAAGAGCGCCCAATACGCAAACGCCTCTCCCCGCGCGTTGGCCGATTCATTAATGCAGGAAGATCCGAGGCCTAGCTTTAACGAACGCAGAATTTTCGAGTTATTAAACTTAAAATACGCTGAACCCGAACATAGAAATATCGAATGGGAAAAAAAAACTGCATAAAGGCATTAAAAGAGGAGCGAATTTTTTTTTAATAAAAATCTTAATAATCATTAAAAGATAAATAATAGTCTATATATACGTATATAAATAAAAAATATTCAAAAAATAAAATAAACTATTATTTTAGCGTAAAGGATGGGGAAAGAGAAAAGAAAAAAATTGATCTATCGATTTCAATTCAATTCAATTTATTTCTTTTCGGATAAGAAAGCAACACCTGGCAATTCCTTACCTTCCAATAATTCCAAAGAAGCACCACCACCAGTAGAGACATGGGAGATCAGCCCGAAGATCTTCGGGCTAATGCGGCCGCCACCTTTCTCTTCTTCTTAGGACTAGAAGGTCCTCCCAGGCTGGCATAGTCAGGCACGTCATAAGGATAGCTAGAAGCCATATGGCCCATTGTATGGATGGGGGTAATAGAATTGTATCTATGTATCTGACGACCCTGTATTACACGAAGGAAATAGTAGATGAAAAGACAAGAGAGCAAGAAAAAGGAAAAACTTCCTTTCTAACAGACGCTTTACTTAACCTTATATATATCTTATTTTTTTCATCGAGCGTGTTCAATTGGACAAGGTGCCACCTTTTCGACACTTCGGTTATTATGTTACACAGTTTTCATGAGGATGGCGCCTTGACTAACTTAATTAGTCATTTGCCAACCACCACAGTTCCCCAATATCGACAGCTTCACGTGCCATTTGCCATTTTGCGATCATGTGACCTCAAGAGAAAAAGCAAAAAATAATGAGAGCTAAGGGATTCGAACCCTTGCATCCGAAGATATCAGAGATTTTAGAGGTTAAATCCACCTAAATCTGACGCCTTAAACCACTCGGCCAAACTCCCATTGTATGTTGGAAGAATTAGAAGCTAGGCCTCGGATCTTCCTGGCACGACAGGTTTCCCGACTGGAAAGCGGGCAGTGAGCGCAACGCAATTAATGTGAGTTACCTCACTCATTAGGCACCCCAGGCTTTACACTTTATGCTTCCGGCTCGTATGTTGTGTGGAATTGTGAGCGGATAACAATTTCACACAGGAAACAGCTATGACATGATTACGAATTAATTCGGTCGAAAAAAGAAAAGGAGAGGGCCAAGAGGGAGGGCATTGGTGACTATTGAGCACGTGAGTATACGTGATTAAGCACACAAAGGCAGCTTGGAGTATGTCTGTTATTAATTTCACAGGTAGTTCTGGTCCATTGGTGAAAGTTTGCGGCTTGCAGAGCACAGAGGCCGCAGAATGTGCTCTAGATTCCGATGCTGACTTGCTGGGTATTATATGTGTGCCCAATAGAAAGAGAACAATTGACCCGGTTATTGCAAGGAAAATTTCAAGTCTTGTAAAAGCATATAAAAATAGTTCAGGCACTCCGAAATACTTGGTTGGCGTGTTTCGTAATCAACCTAAGGAGGATGTTTTGGCTCTGGTCAATGATTACGGCATTGATATCGTCCAACTGCATGGAGATGAGTCGTGGCAAGAATACCAAGAGTTCCTCGGTTTGCCAGTTATTAAAAGACTCGTATTTCCAAAAGACTGCAACATACTACTCAGTGCAGCTTCACAGAAACCTCATTCGTTTATTCCCTTGTTTGATTCAGAAGCAGGTGGGACAGGTGAACTTTTGGATTGGAACTCGATTTCTGACTGGGTTGGAAGGCAAGAGAGCCCCGAAAGCTTACATTTTATGTTAGCTGGTGGACTGACGCCAGAAAATGTTGGTGATGCGCTTAGATTAAATGGCGTTATTGGTGTTGATGTAAGCGGAGGTGTGGAGACAAATGGTGTAAAAGACTCTAACAAAATAGCAAATTTCGTCAAAAATGCTAAGAAATAGGTTATTACTGAGTAGTATTTATTTAAGTATTGTTTGTGCACTTGCCGGCATGCCGGTAGAGGTGTGGTCAATAAGAGCGACCTCATGCTATACCTGAGAAAGCAACCTGACCTACAGGAAAGAGTTACTCAAGAACAAGAATTTTCGTTTTAAAACCTAAGAGTCACTTTAAAATTTGTATACACTTATTTTTTTTATAACTTATTTAATAATAAAAATCATAAATCATAAGAAATTCGCCCGGAATTAGCTTGGCTGCAGGTCGACGGATCCCCGGGAATTCCGGCGATACAGTCAACTGTCTTTGACCTTTGTTACTACTCTCTTCCGATGATGATGTCGCACTTATTCTATGCTGTCTCAATGTTAGAGGCATATCAGTCTCCACTGAAGCCAATCTATCTGTGACGGCATCTTTATTCACATTATCTTGTACAAATAATCCTGTTAACAATGCTTTTATATCCTGTAAAGAATCCATTTTCAAAATCATGTCAAGGTCTTCTCGAGGAAAAATCAGTAGAAATAGCTGTTCCAGTCTTTCTAGCCTTGATTCCACTTCTGTCAGATGTGCCCTAGTCAGCGGAGACCTTTTGGTTTTGGGAGAGTAGCGACACTCCCAGTTGTTCTTCAGACACTTGGCGCACTTCGGTTTTTCTTTGGAGCACTTGAGCTTTTTAAGTCGGCAAATATCGCATGCTTGTTCGATAGAAGACAGTAGCTTCATCTTTCAGGAGGCTTGCTTCAAGCTTGGAGTTGATTGTATGCTTGGTATAGCTTGAAATATTGTGCAGAAAAAGAAACAAGGAAGAAAGGGAACGAGAACAATGACGAGGAAACAAAAGATTAATAATTGCAGGTCTATTTATACTTGATAGCAAGACAGCAAACTTTTTTTTATTTCAAATTCAAGTAACTGGAAGGAAGGCCGTATACCGTTGCTCATTAGAGAGTAGTGTGCGTGAATGAAGGAAGGAAAAAGTTTCGTGTGCTTCGAGATACCCCTCATCAGCTCTGGAACAACGACATCTGTTGGTGCTGTCTTTGTCGTTAATTTTTTCCTTTAGTGTCTTCCATCATTTTTTTGTCATTGCGGATATGGTGAGACAACAACGGGGGAGAGAGAAAAGAAAAAAAAAGAAAAGAAGTTGCATGCAAGC
